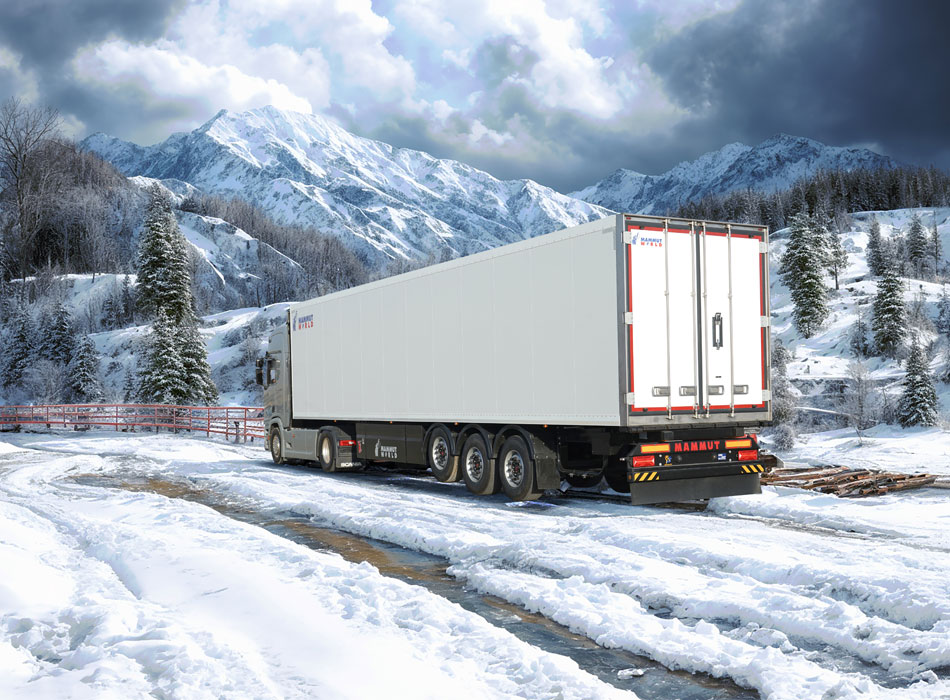

Mammut Refrigerated Semi-Trailer

Question 1

Dimensions

Answer

Length: 13,590 mm (inside 13,400)
Width: 2,600 mm (inside 2,470)
Height: 4,000 mm (Load height 2,540)
With Al Rail: 2,560 mm with chequered plate or Anti-wear resin

Question 2

Max. Payload & Weight

Answer

24,000 kg
84 cubic meter with Al rail or 85 cubic meter with chequered plate
33 wooden pallets
8,100 kg with nonskid & anti-wear floor coating
8,500 kg with Aluminum Rail – Approximately

Question 3

Body

Answer

Side & Front Walls / Roof – Sandwich panels with high quality insulating PU covered on both sides with pre-painted Aluzinc sheets (outer 0.7 mm with layer film, inner 0.5 mm thick) coated with 120 microns super polyester paint (RAL 9016) and 15 microns primer (other RALs according to customer orders)

Question 4

Wall Thickness

Answer

Front wall : 100 mm (reinforced to accommodate and support the cooling unit)
Side wall : 60 mm
Roof : 80 mm (both reinforced for assembling to the front wall)

Question 5

Walls Assembly

Answer

Double patented joints bonded with high strength adhesive for better insulation
Exterior body to bottom using high performance adhesives and secret screws
Sealing materials for roof and side walls made in Germany
Interior U profiles (Aluminum) to body using high quality sealant and lockable stainless steel rivets with special coating
Exterior L profiles (powder coated aluminum) to exterior body corner bonded by adhesive
Air circulation duct on the ceiling with interior profile 300 mm
Air entrance damper for controlling on the front wall and rear door

Question 6

Floor

Answer

GFRP-PU composite panel (glass fiber reinforced with polyester & PU foam)
Reinforced for connecting body and trailer chassis by clamp
Options : Nonskid & anti-wear floor coating for pallet loading
T Aluminum profile - ensuring extra strength & providing uniform airflow under the cargo
Total floor thickness : 135 mm / 140-160 mm for options

Question 7

Rear Doors

Answer

2 × Doors (side hinged) with anti-rust and anti-corrosion capabilities
Each includes 3 × AL hinges
GFRP-PU composite panel (glass fiber reinforced polyester with polyurethane core)
85 mm thick
Frame: Stainless steel (max. strength & min. maintenance) with polyurethane foam filler
2 × External locks, all from stainless steel (with and without key)
Sealed with special TPE and PVC gasket
Air vents incorporated

Question 8

Cooling Unit

Answer

Available in a wide range of models / Working temperature between +20 to -29 degrees of centigrade

Question 9

Chassis

Answer

Frameless Chassis structure & components from St.52-3 / QST380 / S 500
Automatic CO2 welding technology / Merkle, Germany
Main I beams with standard flat bar / All steel stamping parts are assembled using special fixture

Question 10

Axle & Suspension

Answer

3 × 9 tons SAF® / BPW® / MAMMUT®
Front axle with automatic lifting capability
Air suspension with special shock absorbers
Lowering and rising of trailer height

Question 11

Tire/Rim

Answer

6 × Radial tires 385/65 R22.5
6 × Single rims 11.75 × R22.5

Question 12

Landing Gear

Answer

Two mechanically operated landing legs 24 tons dynamic capacity & 50 tons static capacity
Operated from right side

Question 13

King Pin

Answer

2” dia. (162 KN) with coupling according to SAE standard with special bolster plate
Corner dimension :2040 mm

Question 14

Braking System

Answer

Knorr, WABCO 2S/Disk according to ECE-R13 standard
Dual circuit pneumatic with automatic load sensing valves
Two double acting diaphragm brake chambers (2 rear axles)
EBS incl. ABS & RSP (Roll Stability Program)
Emergency valve / Parking brake / Reset-to-Ride height function

Question 15

Electrical System

Answer

7 & 15 Poles quick release connector with 24 volts rear and side lights plus LED alarming system According to UNECE regulation R48

Question 16

Painting

Answer

Shot blast preparation process according to SA2.5 standard and with cationic phosphate
ED with a thickness of 20 microns
Powder color of 80 microns or polyurethane with a thickness of 100 microns
With color RAL according to customer

Question 17

Accessories

Answer

Rear guard protection
Rear under-run protection according to UNECE Regulation ECE-R73
Rubber shock absorbers (rear)
2 × Heavy Duty D-ring
6 × Semi-circle mud guards
2 × Rear Spray suppression system according to UNECE Regulation-EU 109/2011
2 × Wheel chocks with holders
Fire extinguisher bracket / Spare wheel carrier with clamp mechanism
2 × Tool boxes (2.5 m) with different models
3 steps sliding ladder under platform
Special Metal-ladder / Rear door rubber shock absorbers
Rear door stopper / 1 × 400 L Aluminum fuel tank
LED-Fuel tank indicator / Side protection and Reflective Ribbon outline marking on side/rear walls according to UNECE Regulation

Question 18

Options

Answer

Box: Outer thickness sheet: 0.7 mm with layer protective
AL profile protective for side walls
Air curtain behind of the rear door
Load tensioner hook / Load tensioner rail (external)
Special load holding telescopic rod
125 L stainless steel water tank
Spare tire & rim / Tire-pressure monitoring system (TPMS)
FRC

Question 19

Customized Models

Answer

Aluminum-covered Refrigerated Semi-trailer
Full-fiberglass Refrigerated Semi-trailer

Question 20

Licenses

Answer

Certified by INSO (Iran National Standards Organization) & Type approval of vehicles – European Commission

Question 21

Can a Refrigerated Semi-Trailer Maintain a Constant Temperature?

Answer

Yes, the Mammut refrigerated semi-trailer can maintain a stable temperature across different ranges, making it fully suitable for transporting temperature-sensitive goods.

Question 22

What is the Maximum Adjustable Temperature for a Refrigerated Semi-Trailer?

Answer

A refrigerated semi-trailer can regulate temperatures from -20°C to +10°C, making it suitable for transporting frozen foods or pharmaceutical products.

Question 23

Is it Possible to Transport Pharmaceutical Products with a Mammut Refrigerated Semi-Trailer?

Answer

Yes, the Mammut refrigerated semi-trailer is specifically designed for transporting temperature-sensitive pharmaceuticals and can maintain temperatures in accordance with pharmaceutical standards.

Question 24

Is the Mammut Refrigerated Semi-Trailer Suitable for Transporting Perishable Food Products?

Answer

Yes, this type of semi-trailer is suitable for transporting various food products such as meat, dairy, and vegetables, and it effectively maintains the required temperature.

Question 25

What Security Systems are included in Mammut Refrigerated Semi-Trailers?

Answer

The Mammut refrigerated semi-trailer is equipped with a temperature alert system, Anti-lock Braking System (ABS), and additional safety features designed to prevent any damage to the cargo.

Question 26

Is it Possible to Remotely Control the Temperature Inside a Refrigerated Semi-Trailer?

Answer

Many refrigerated semi-trailer models are equipped with remote control systems, allowing you to manage and adjust the temperature from any location.

Question 27

Is the Refrigerated Semi-Trailer Equipped with a Temperature Alert System?

Answer

Yes, the Mammut refrigerated semi-trailer features a temperature alert system that notifies the driver in case of unauthorized temperature changes or any malfunction in the refrigeration unit.

Question 28

How Can I Ensure the Proper Functioning of a Trailer’s Refrigeration Unit?

Answer

Mammut refrigerated semi-trailers are tested for quality and system performance before delivery to customers, ensuring that the refrigeration unit functions correctly.

Question 29

What is the Fuel Consumption of a Refrigerated Trailer?

Answer

The fuel consumption of a refrigerated trailer depends on the model and the semi-capacity of the refrigeration unit. On average, fuel usage is higher than that of standard semi-trailers due to the operation of the cooling system, but it varies significantly depending on the route and operating conditions.
